Kendon UT305SXS Stand-Up™ Utility Trailer Folding Multi-Purpose Utility Trailers
$ 2,499.00
$ 5,999.00
Kendon UT305SXS Stand-Up™ Folding Utility Trailers

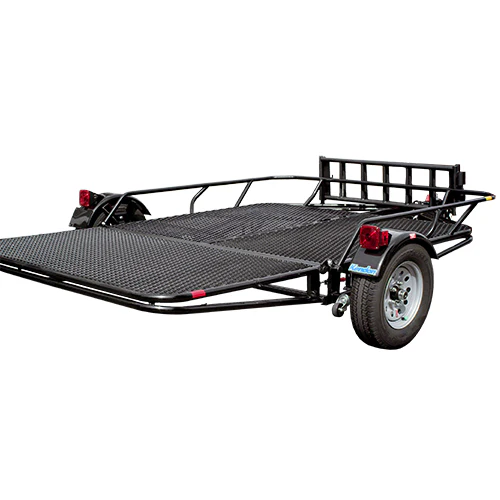

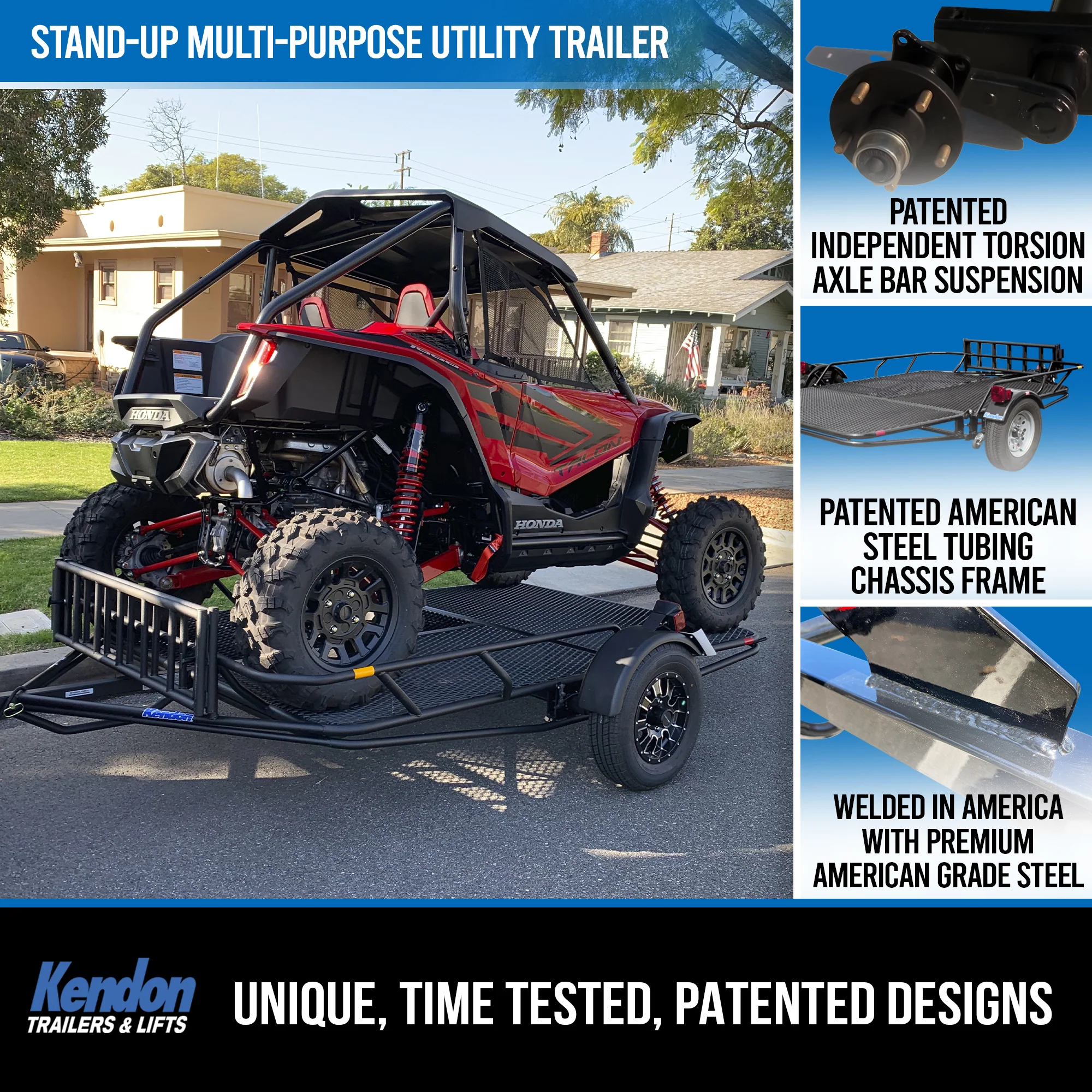

Big, beefy and ready for action, the Folding Stand-Up™ Utility Trailer works as both a multi-purpose utility trailer and a powersports trailer for ATVs, UTVs, and Side x Sides. With a large 6 ft. x 9 ft. expanded metal deck our utility trailers can handle all you can throw at them. And, in true Kendon style, the utility trailer folds up and stands up for amazing space-saving convenience. The folding Utility trailer has a 2,000-lbs.-rated axle and heavy-duty expanded metal deck. Big, strong, and useful.
Superior design, exceptional performance
Exceptional performance doesn’t just happen by accident, it’s a product of superior design and years of testing and refinement. Kendon’s round steel tube construction and triangulated frame geometry is inspired by race-car design and engineering. The result is a trailer that is incredibly easy to use and even easier to tow.
Lightweight Versatility
Our years of testing and refining our frame geometry helped us develop an amazingly lightweight, incredibly strong and versatile utility trailer. That means a smooth ride for your cargo and an easy tow for your vehicle. And for you that means a trailer that’s easy to stand up and maneuver in the garage.
Well-Rounded Performance
Whether your towing your favorite toys or doing hard work, the Kendon Folding Utility Trailers get it done. The flat deck trailer is a total of 6 ft. x 9 ft. of heavy-duty expanded metal and is strong enough and large enough to carry ATVs, UTVs, SXSs, golf carts, appliances, wood, building materials, or just about any other cargo you need to haul. Best of all, the Utility trailer takes up so little space in the garage you’ll forget all about it – until you need it again.
FEATURES
- Independent torsion bar suspension

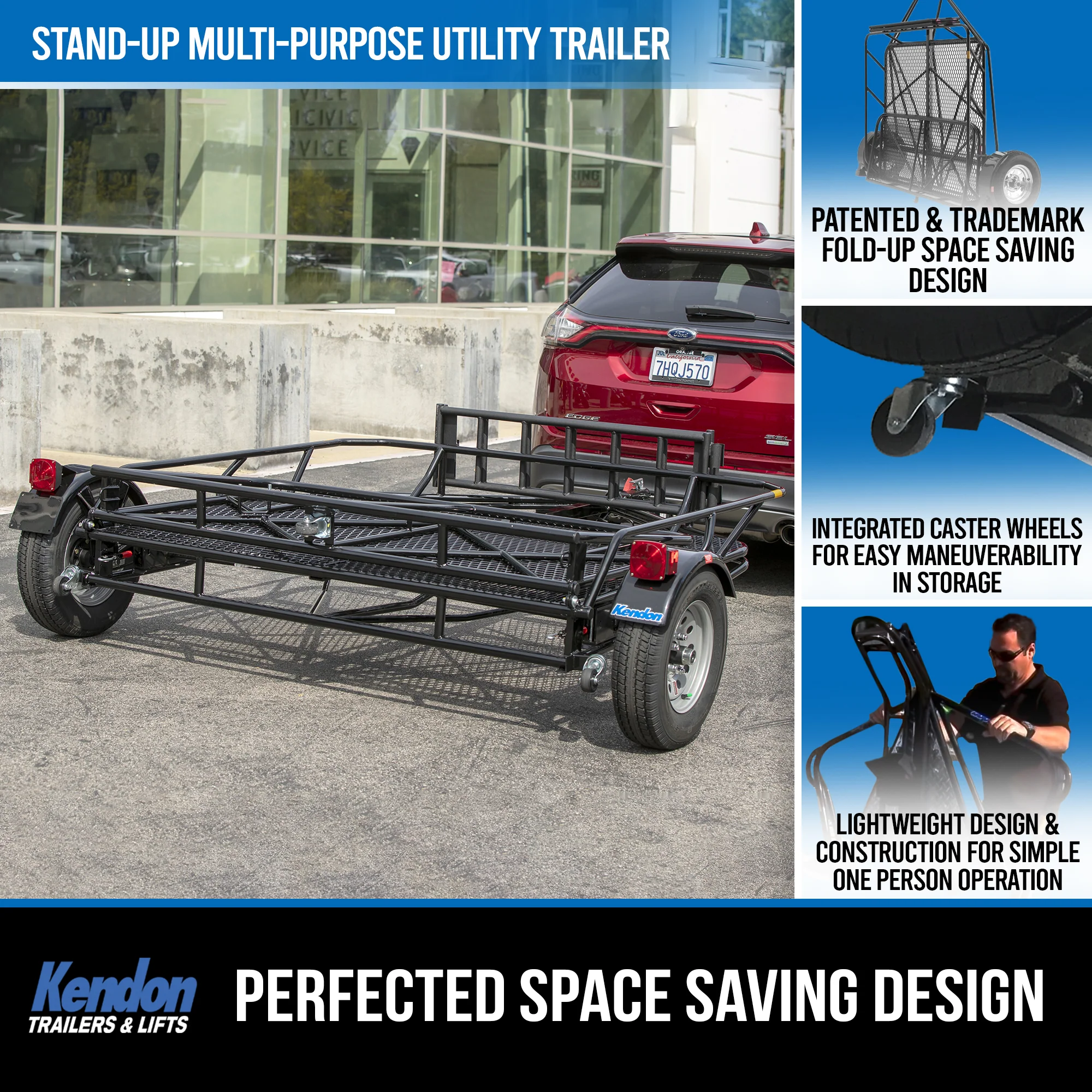

- Integrated casters for easy maneuverability in storage
- Lightweight design and construction for simple operation

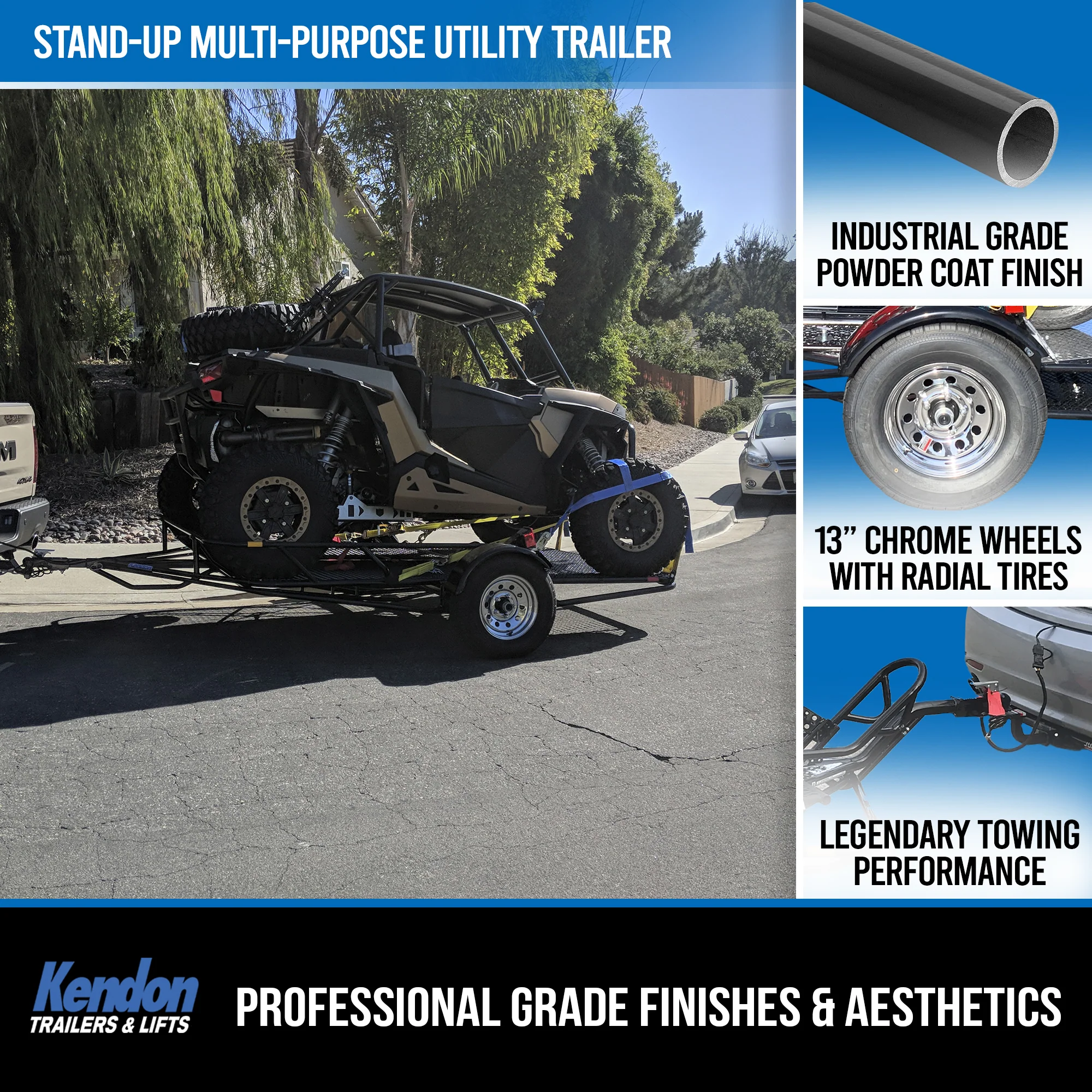

- 13-inch alloy wheels with radial tires
- Industrial-grade powder coating finish
- Kendon’s legendary towing performance
- Handcrafted in California; Made in USA
- 2,000 lb. load carrying capacity

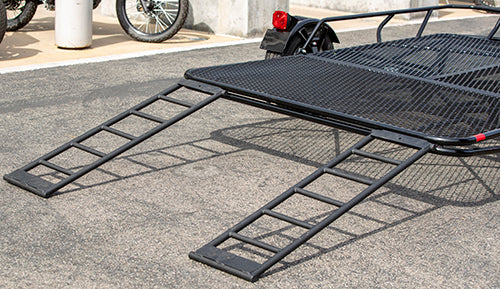

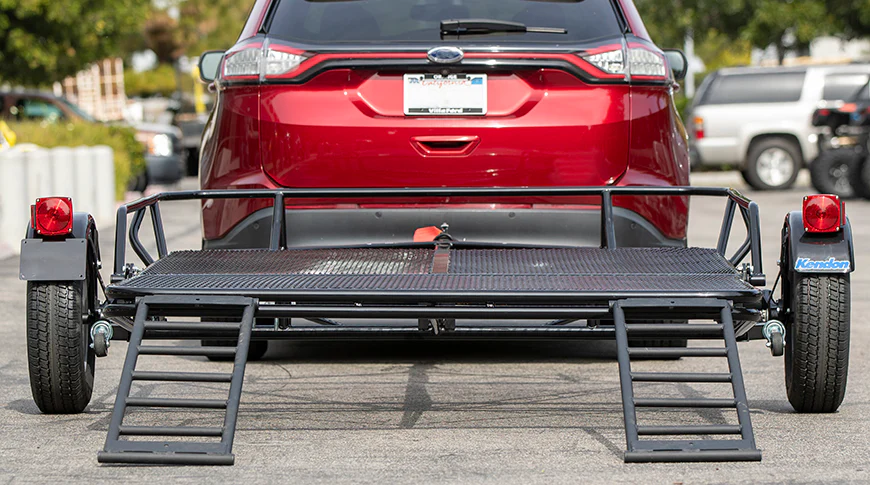

- Two heavy-duty loading ramps (stored on trailer)
- 3-year and 5-year Factory Extended Warranty available
- Assembly Required
Price Excludes Registration ~ Purchaser Responsible for Registering Trailer at Their Motor Vehicle Dept.
Kendon Patented Trailer Chassis Design

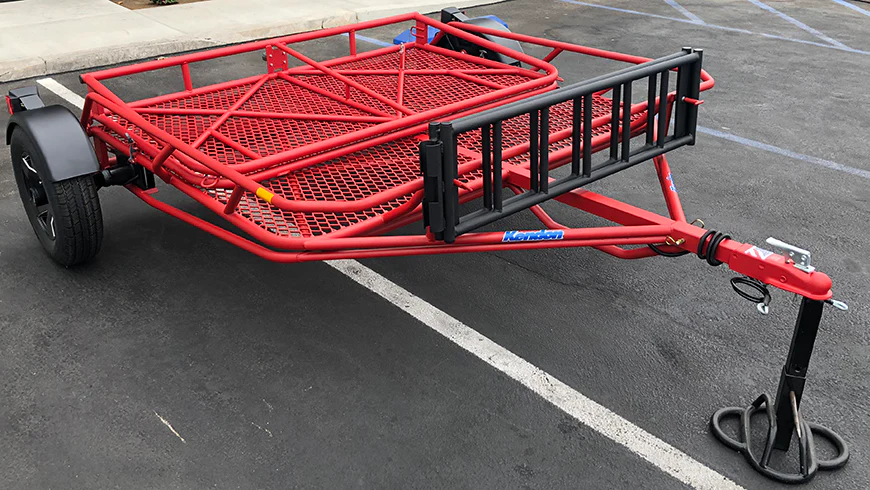

Fully customize your trailer the way you want it at NO extra cost.** Select from a range of color options and four alloy wheel styles. Can’t choose just one color? Choose two! You can select a one or two-tone color option to make your trailer stand out from the crowd.

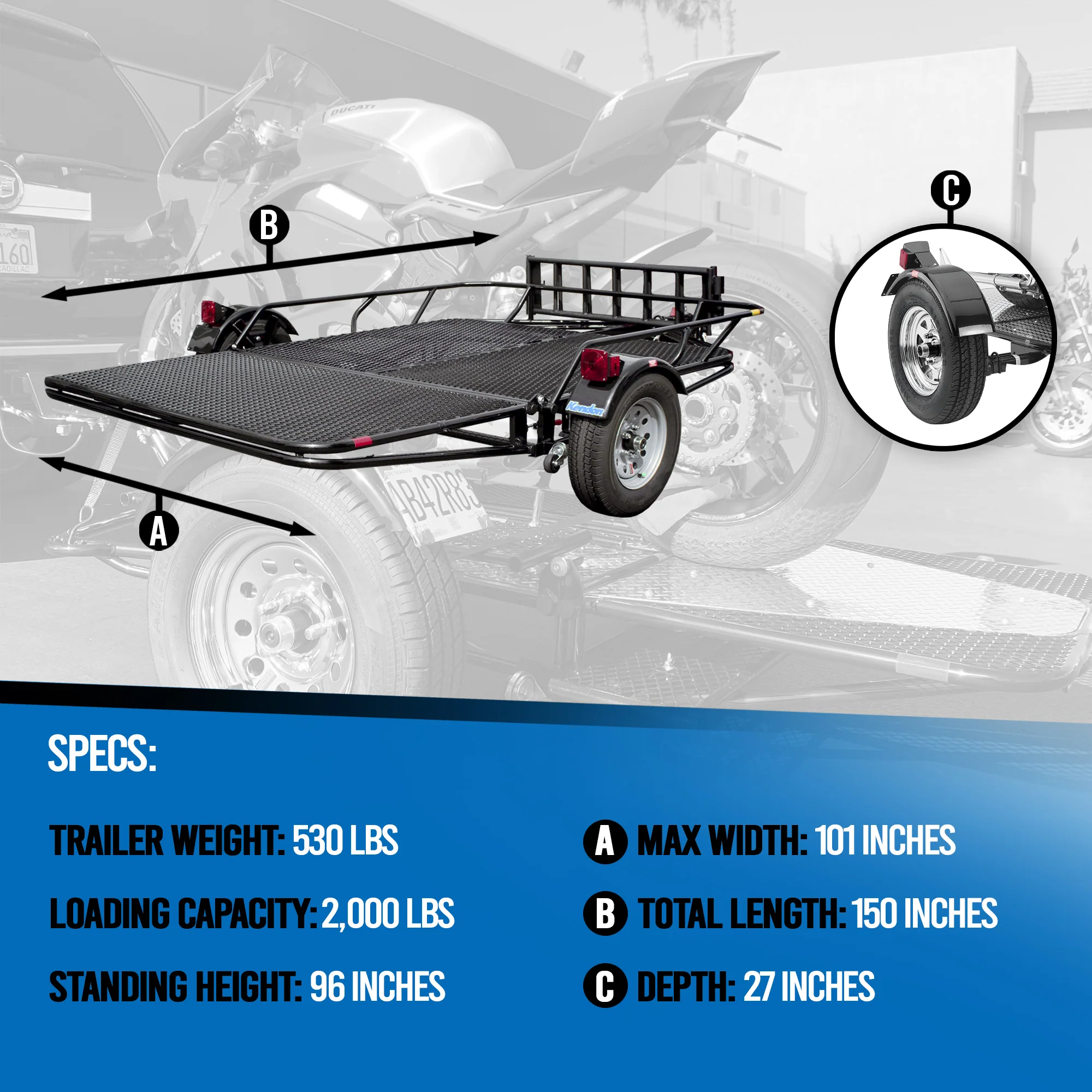

Technical Specifications
| Specifications | UT305SXS |
| Model | ATV/UTV/SXS Utility Trailer |
| Standard Color | Black |
| Paint/Coating | Powder Coated |
| Frame Material | Steel Tubing |
| Deck Area | 72” x 108” |
| Deck Area Inside Rail | 76.75” x 116” |
| Deck/Platform Type | Heavy-Duty Expanded Metal |
| Deck/Platform Height | 18” |
| Weight | 530 lbs |
| Load Capacity | 2,000 lbs |
| Maximum Length¹ | 150" |
| Width | 101" |
| Depth | 27" |

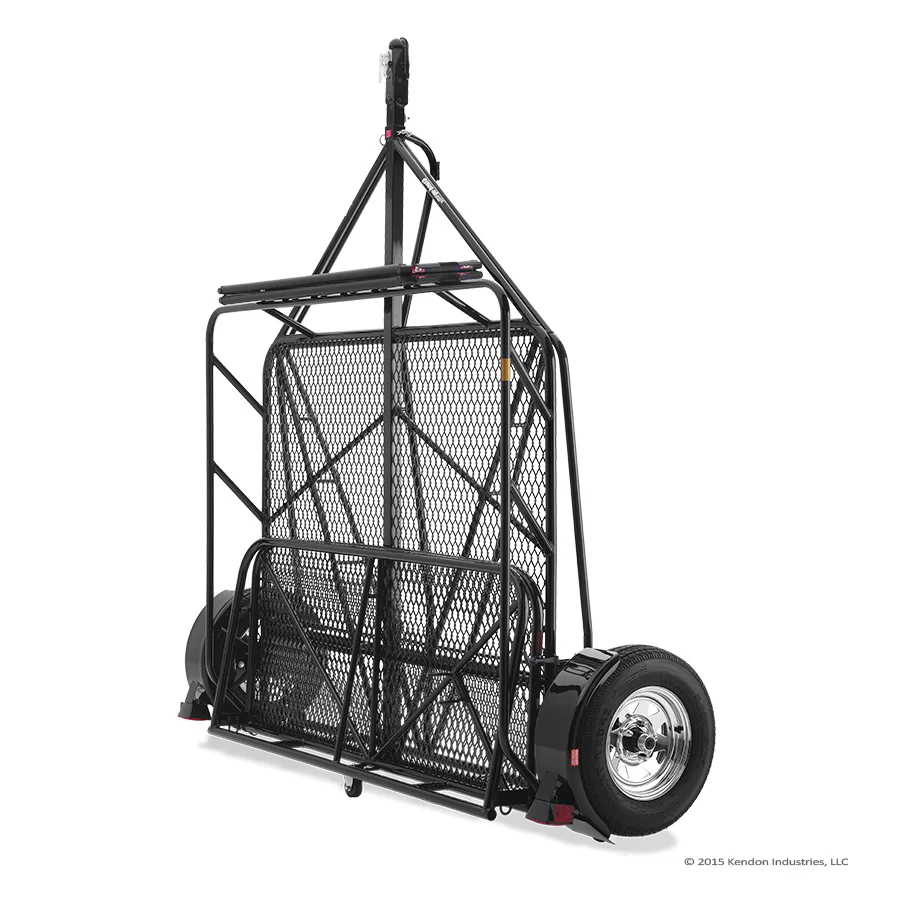

| Standing Height | 96″ w/Removable Tongue Removed |
| Length from Front Tire to Rear Axle² | 112” (Max Vehicle Measurement) |
| Width Between Fenders | 84" |
| Width Between Rails | N/A |
| Wheel/Tire Size3 | ST175/80R13 – 13″/Radial |
| Wheel/Rim Type3 | Modular Chrome/Steel |
| Wheel Bolt Pattern | 5-on-4½” |
| Hitch Class | Class 2 or Higher (recommended) |
| Hitch Height4 | 18″ – 19″ |
| Coupler/Ball Size | Size 2" Coupler - Requires 2" Ball |
| Electrical Connector | 4-Pin Flat |
| Suspension Type | Independent Torsion Suspension |
| Suspension Mounts | Double Mounting Brackets |
| End-Units/Hubs | Removable Spindle - SuperLube |
| Tongue Weight | 10% - 15% of Total Load Weight (approximate) |
| Transportation Capabilities5 | Full 6′ x 9′ deck. Ideal for up to two (2) ATVs, multiple Dirt Bikes, one (1) UTV/SXS, one (1) Golf Cart, and/or Cargo |
All measurements in inches (in/") and weights in pounds (lbs).
1 Maximum Length refers to the unfolded/open trailer length measured from the front of the coupler to the back of the rear folding section.
2 Max bike measurement is measured from the front of the motorcycle’s front tire to the center of the rear axle
3 5-Spoke Aluminum Wheel with Radial Tire upgrade is available for all Kendon trailers
4 Hitch Height refers to the standard hitch height, which may vary with vehicle, trailer, and load. Trailer should be level in tow. Check carefully before towing.
5 Due to the vast number of different vehicles, trailer applications, capabilities and functions may vary. Please contact us with your specific application to ensure the product fits your needs.
